Plastic Festoon Cable Trolley System For C Rail

Components:

1. C-track: The trolley moving in the C rail, Include straight track and curved section with R more than 1m. The length for the straight section is 4m; it is extended with the Joint. Versatility - it can be used for straight rail as curves rail, for indoor and outdoor applications;
2. Towing Trolley: It drives the middle trolley move along the track. Four fully enclosed ball bearings, flexible, applied to the dense dust occasion. The maintenance of the line is extremely reduced.

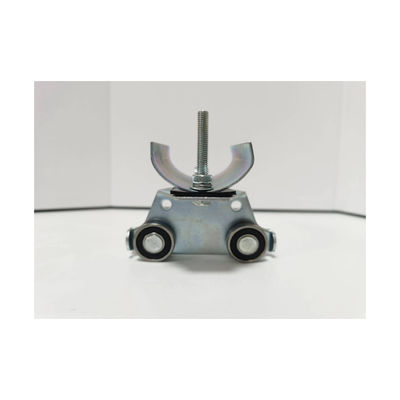

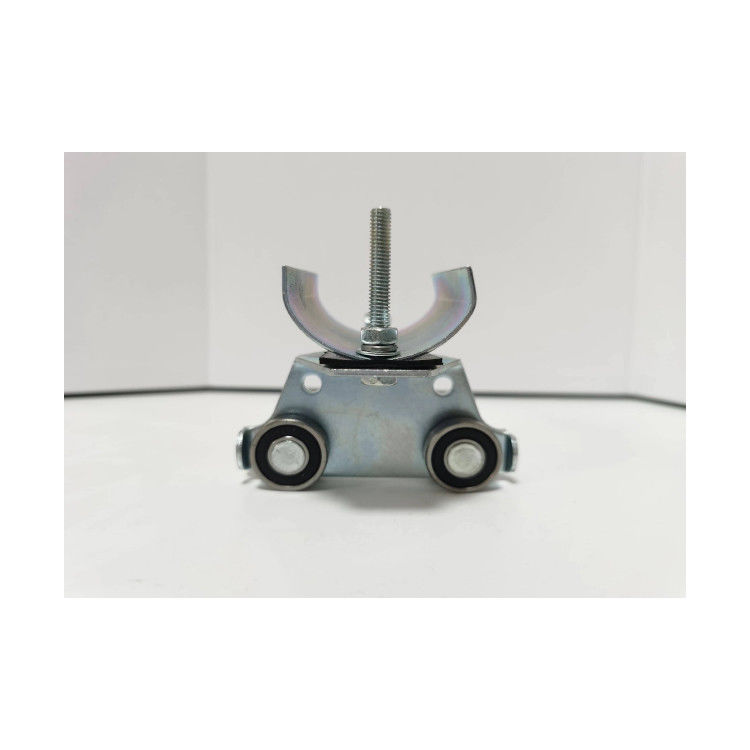

3. Middle Trolley: Wheel is fully enclosed ball bearing; Cable clamp is curved soft rubber cushion; Bumper is installed in case of impact.
4. End Trolley: End device, which prevent the trolley slide out of the track.
5. Joint: Clamp type is common used and cost-effective, square type is new one which same as Taiwan brand.
6. Hanger: C32HG-1 for C-track support bracket and C32HG-5 for angle steel support bracket.
7. End stop: End device, common use for C32 and C40.
8. End cap: Plastic material, dust cover, nice-looking.
9. Support Bracket: C40 support attachment, welding support bracket, easy for installing.
10. Cable:Power cable and pendent control cable. PVC housing or rubber housing for option.
11. Steel Wire: Safe and reliable.

Design features:

Compact arrangement, corrosion resistance and simple assembly are its essential features, easy for transportation and installation.

1. Material: Galvanized Steel, 304# Stainless Steel, Aluminum, PVC (Nylon coating is optional for heavy corrosion environment
2. Ambient temperature: -35ºC-90ºC
3. Trolley movement speed: V<120m/min
4. Trolley service life: 32000
5. Curve R ≥ 1.0m, only C32 can be curve
