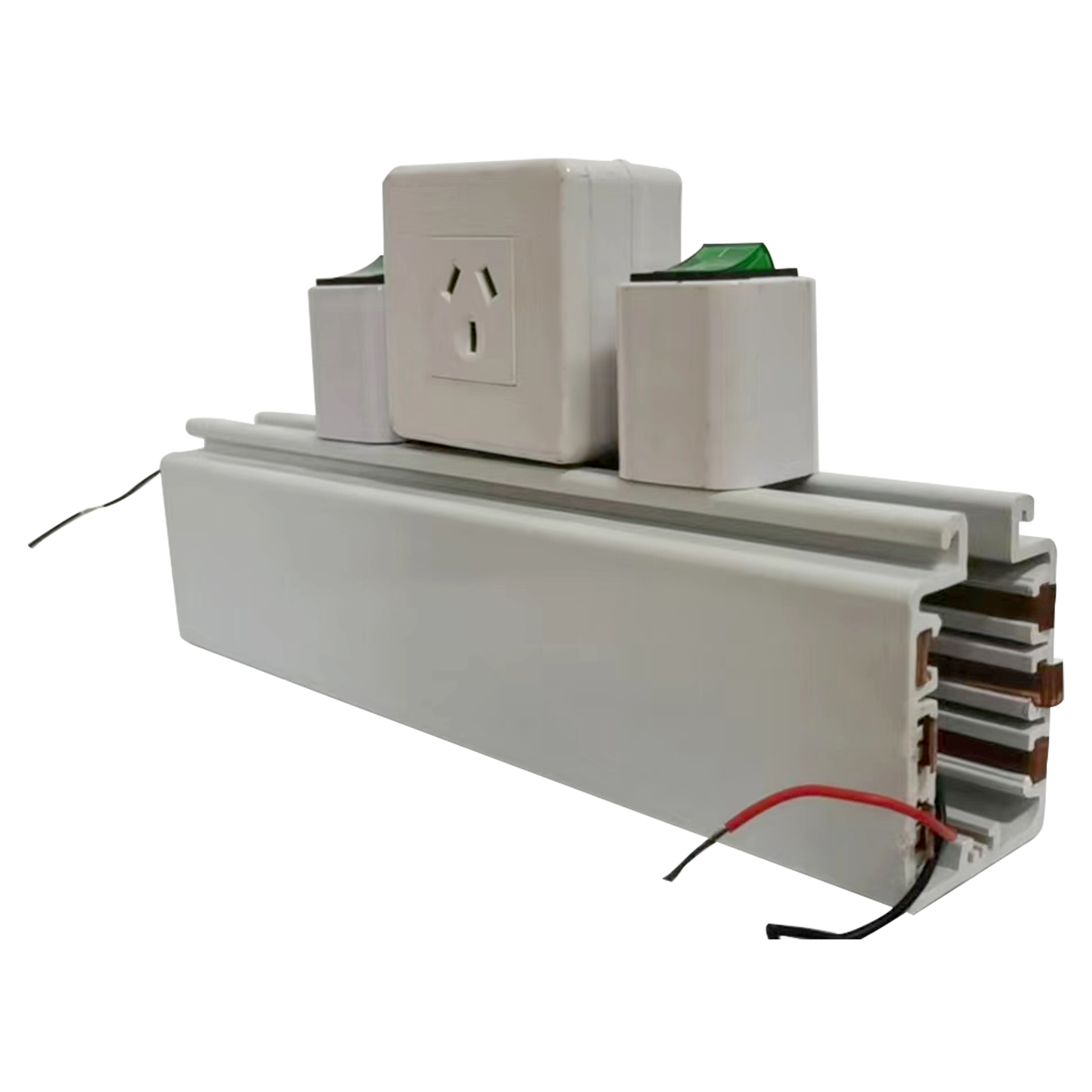

Crane Conductor Bar System Aluminum Lighting Busbar Powered

Name: Crane Conductor Bar System Aluminum Lighting Busbar Powered
Brand: qimei
SKU: alloy lighting busbar
Rating: 4.9 (112 reviews)

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	qimei
Model Number:	alloy lighting busbar

Payment & Shipping Terms:

Packaging Details:	Wooden pallet, wooden crate, according to customer's requirements
Supply Ability:	100000 Meter/Meters per Month

Contact Now

Detailed Product Description

Color:	White	Voltage:	220/380V
Current:	50A-100A	Place Of Origin::	China Jiangsu
Brand Name::	Qimei	Certificate::	ISO CE CCC
Material::	PVC+copper	Minimum Order Quantity::	1m
Width*high:	55.8mm*72.6mm	Application::	Cranes,monorails,electric Hoists,amusement Park,conveyor
Port:	Shanghai
High Light:	crane conductor bar system , Conductor Bar System Aluminum , Aluminum Lighting Busbar Powered

Chinese factory price hanging aluminum alloy lighting busbar powered busbar

PRODUCT DISPLAY

Conductor Rails:

The conductive strips made of copper are fastened in high-quality plastic insulating profiles and are available with 3, 4, 5 and 7 poles with a nominal current of 50 to 240 A. Standard profile lengths of 4000 mm, Custom length sections are available. The ground conductor is identified by a green/yellow stripe.

Hanger

Sliding hanger and fixed hanger is available.
Material: High quality galvanized steel.
Support Distance: 1200mm/interval.

Joint

Angle clamping type is used for joint for small sections.
Bolt joint clamp type is used for large sections.
Material: Copper, bolts, nuts.

Collector trolley

The roller-guide collector trolleys are available as 4, 5 and 7 pole types.
Copper graphite carbon shoes are used for energy and control voltages.
Double collectors are used to improve the quality of the contact and for transfers

Towing arm

Towing arms are designed as the attachment point between the moving machine and the collector. They are available in fork or chain versions, both of which are designed for straight, uninterrupted tracks or a special spring-loaded design is available for systems with pick-up guides/isolation sections.

End Feed

Housing material: plastic
Cable plug-in included
Include end feeding joint for large sections

In-Line Feeds

Includes 500mm length for small section (<=140 a="">
With two hanger and bolted joints
Cable plug-in included.

Product number:	alloy lighting busbar powered busbar
product material:	alloy
Minimum quantity of product:	1m

MAIN PRODUCTS

FACTORY & WAREHOUSE

OUR CERTIFICATE

PACKAGE & TRANSPORT

FAQ

1.What the style of your company?

Our company is a OEM factory , all the product made by ourselves, and we can control the schedule very well.

2.What do you need to provide a quote?

Please kindly send us the drawing of your product. Details below should be included:

A.Model B. Materials C. Quantity D.Usage place ,etc.

3.How do I know about the production?

We will double confirm you requirements and send you the sample before the mass production.

During the massproduction, we will keep you informed of any process.

Besides, we will do 100% quality inspection before shipment.

4.How do I know about the delivery ?

We will inform you the tracking number once we get it from shipping agent.

Also we will keep updating the latestshipping information for you.

5.What will you do for after sales?

When our metal parts apply to your products, we will follow up and await your feedback.

Any question related to ourmetal parts, our experienced engineers are ready to help.
