Wuxi Qimei Electric Appliance Co., Ltd.
 |
| Place of Origin: | Jiangsu, China |
| Brand Name: | qimei |
| Model Number: | HFP56 |
| Packaging Details: | Wooden pallet, wooden crate, according to customer's requirements |
|---|---|
| Supply Ability: | 100000 Meter/Meters per Month |
| Color: | Copper Color | Voltage: | 220V/380V |
|---|---|---|---|
| Current: | 50A-100A | Product Name:: | Multipole Enclosed Conductor Bus Bar |
| Place Of Origin:: | China Jiangsu | Brand Name:: | Qimei |
| Certificate:: | CCC | Material:: | PVC+copper |
| Minimum Order Quantity:: | 1m | Width*high: | 55.8mm*72.6mm |
| Application:: | Cranes,monorails,electric Hoists,electric Tools.stacki | Port: | Shanghai |
| High Light: | busbar for overhead crane,eot crane busbar 3 Poles,eot crane busbar 4 Poles |
||
Flexibility and Expandability:
One of the key advantages of conductor bar systems is their flexibility and expandability. The modular design allows for easy customization and expansion of the system as power requirements change or as new equipment is added. Additional conductor bar sections can be seamlessly integrated into the existing system, and power feeds can be strategically positioned to ensure efficient power distribution.
Versatile Installation Options:
Conductor bar systems offer versatile installation options to suit different facility layouts and requirements. The conductor bar can be mounted on the ceiling using brackets or suspended from an overhead structure using hangers. It can also be installed on walls or along the floor, depending on the specific needs of the application. The installation method chosen should take into consideration factors such as equipment clearance, accessibility for maintenance, and overall safety.
|
Product name:
|

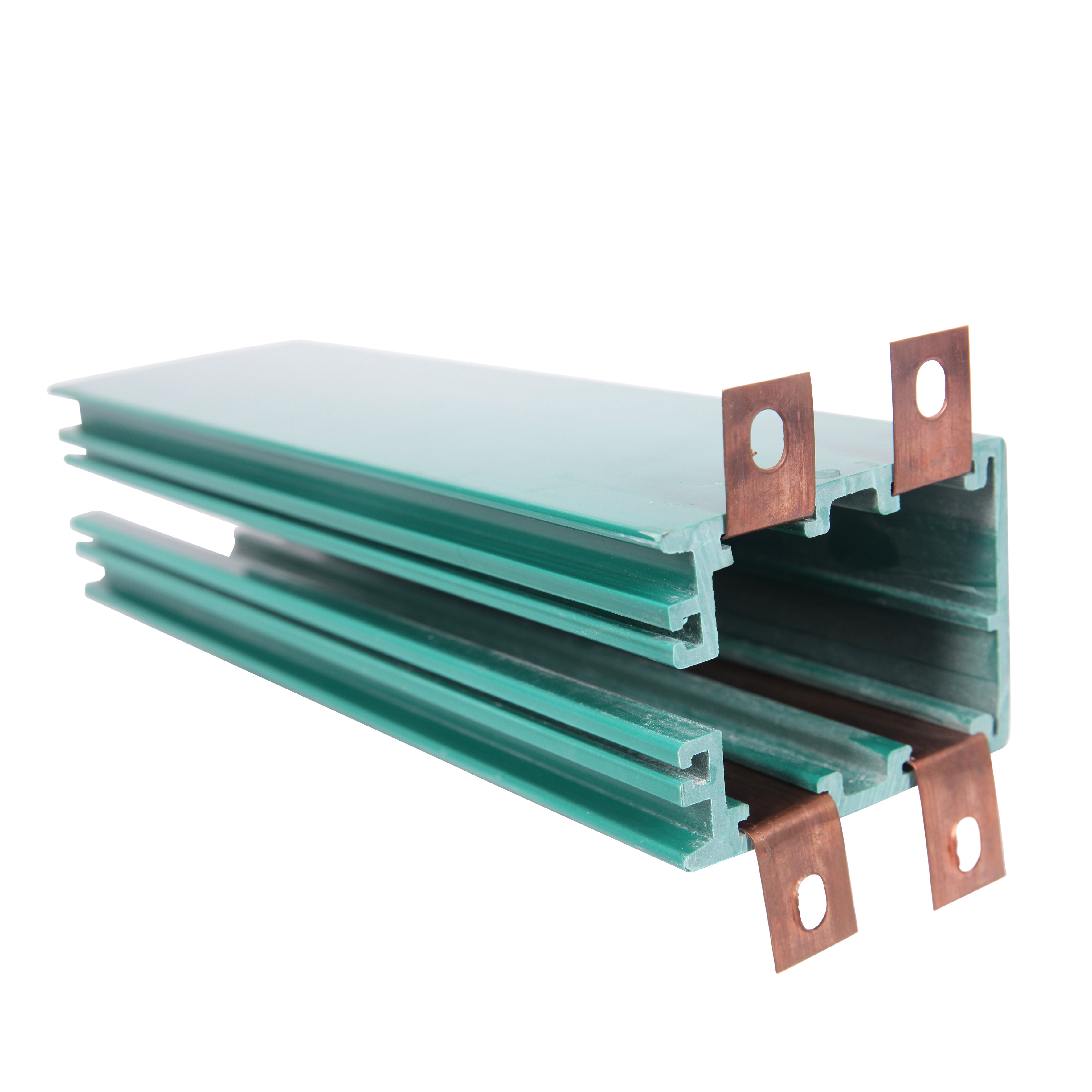

multipole enclosed conductor bus bar
|
|
Product number:
|
HFP56
|
|
product material:
|
PVC+copper
|
|
Minimum quantity of product:
|
1m
|
